Penile Doppler Ultrasound in London When it’s useful — and when it isn’t
A specialist scan and injection test to check blood flow in the penis — with results explained to you on the day.
30–45 minutes in clinic (injection + scan + measurements)
performed and interpreted by a consultant urologist-andrologist (never outsourced)
A clear plan afterwards — whether that means further tests, treatment options, or reassurance
Have you been referred for a PDU by your doctor or specialist?
I will arrange the test at a time that works for you.
Do you believe that PDU is what you need? or are you unsure?
In this case, I recommend starting with a consultation before booking the test. This keeps you safe and gives you the best chance of getting the answers you need.
PIF TICK accredited information
The Patient Information Forum is the UK membership organisation and network for people working in health information and support. The PIF TICK is the UK-wide Quality Mark for Health Information.
This content has been produced for educational purposes and reflects current evidence-based practice. Although GGO Med Ltd is a private urology service, all patient information is compiled with the aim of being accurate, evidence-based, and free from commercial bias. If you feel this content does not meet that standard, we would welcome your feedback — please contact us here.
CONSULTATION FIRST

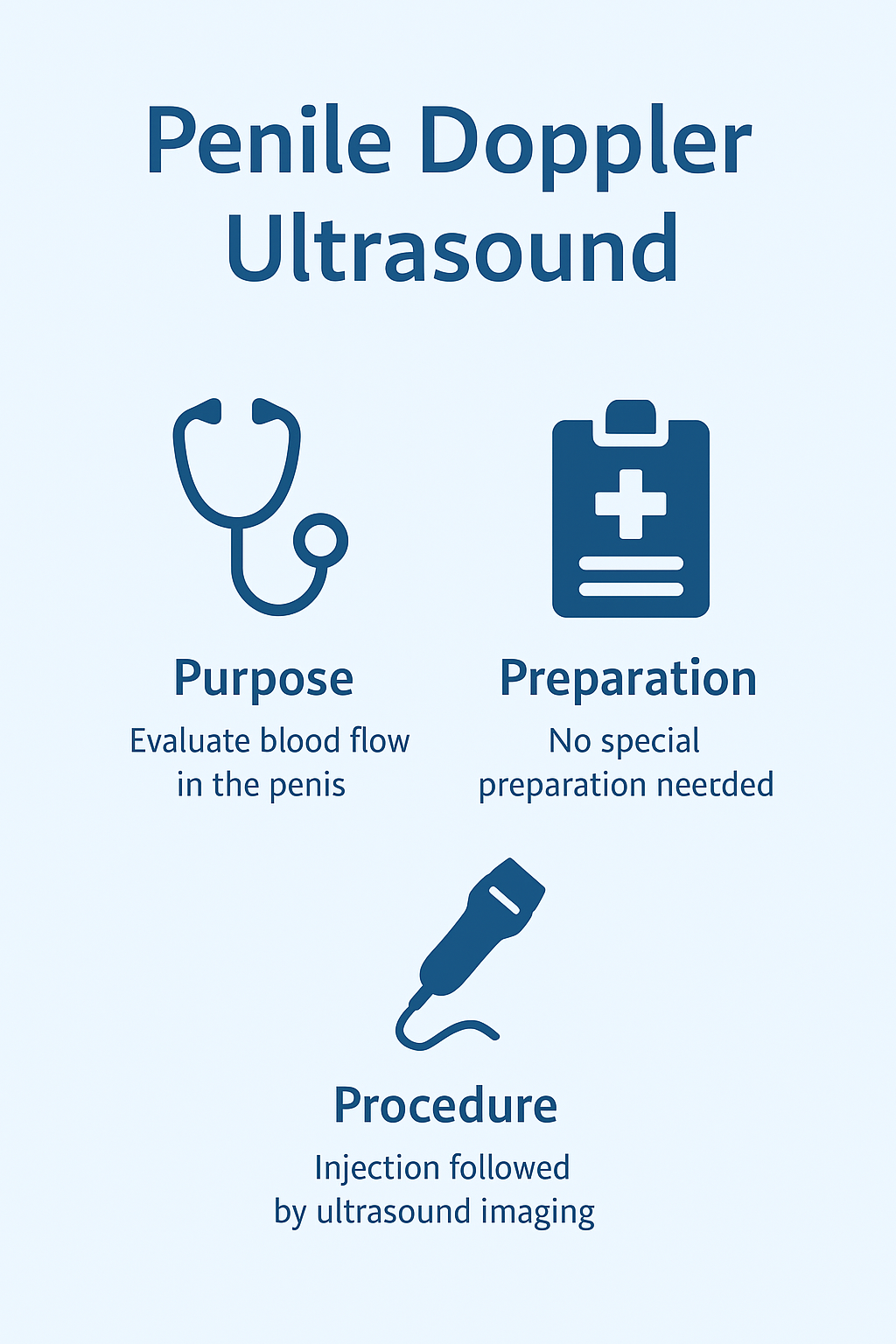

What Is Penile Doppler Ultrasound?
In brief: Penile Doppler Ultrasound (PDU) is a specialised scan that uses sound waves to check blood flow inside the penis. It is non-invasive — nothing goes inside your body. It helps find the cause of erectile dysfunction (ED — difficulty getting or keeping an erection). It can also look for signs of Peyronie's disease (a condition that causes scar tissue to build up in the penis, which can lead to bending or pain).
What you’ll leave with
"A clear explanation of whether blood flows in normally and whether the penis can hold that blood to maintain an erection"
“A treatment plan matched to the result (meds / injections / devices / shockwave / implant / psychosexual support)”
“A written report for you (and your referring clinician if relevant)”
PDU at a Glance
Best For?
ED that failed tablets treatment
pre-shockwave (Li-ESWT)
Peyronie’s Disease with ED
pre-implant surgery (End Stage ED)
What happens in 30/45 minutes?
A little injection to induce an erection in clinic
Scan and measurements
Discussion and explanation throughout the test
A detailed report will be ready in few days
When it is less useful?
First ED diagnosis
Successful medical treatment of mild/moderate ED
Very high probability of Performance anxiety
Introduction
I am a Consultant Urological Surgeon specialising in andrology (men's reproductive health) and sexual health. I have helped thousands of people understand and deal with problems related to erections. One of the most useful tests I use is the Penile Doppler Ultrasound (often referred to as a penile duplex doppler ultrasound), a detailed test that gives important information about the blood vessels inside the penis.
Many people feel anxious about tests related to intimate health. In this guide, I want to explain this test clearly. I will cover why it matters, what it involves, and what to expect. This is especially useful if you need it for conditions like erectile dysfunction or Peyronie's disease.
PDU in detail
Penile Doppler Ultrasound is a specialised diagnostic procedure specifically designed to evaluate the dynamics of penile blood flow. It goes beyond a standard structural ultrasound by incorporating Doppler technology. Here’s the breakdown:
Ultrasound Imaging: Like regular ultrasound, it uses high-frequency sound waves emitted from a probe (transducer) placed on the skin. These sound waves bounce off internal structures, creating real-time images of the penile tissues, including the erectile chambers (corpora cavernosa) and the surrounding layers like the tunica albuginea.
Doppler Technology: This crucial component measures the speed and direction of blood flow within the penile arteries and veins. It works by detecting the frequency shift (Doppler effect) of sound waves reflecting off moving red blood cells. Different colours are often used on the display to represent flow towards or away from the probe (Colour Doppler).
By combining these two elements, the penile duplex doppler ultrasound provides critical, objective information about:
Arterial Inflow: How efficiently blood is entering the penis through the cavernosal arteries when stimulated.
Venous Outflow (Veno-occlusion): How effectively the veins are being compressed to trap blood inside the penis and maintain rigidity. Inefficiency here is termed "venous leak".
Vessel Health: Identification of potential blockages, narrowing (stenosis), or other abnormalities within the penile blood vessels.
Structural Anatomy: Detailed visualisation of the internal penile structure, essential for identifying scar tissue, fibrosis, calcification, or specific plaques associated with Peyronie's disease.
Essentially, this penile blood flow test provides a dynamic, real-time assessment of the vascular mechanics required for a normal erection.
A Note on Terminology
You might hear this test referred to by several names, including Penile Doppler Ultrasound, Penile Duplex Ultrasound, Penile Colour Doppler, or Dynamic Infusion Cavernosometry and Cavernosography (DICC - though DICC often implies additional pressure measurements not always performed). Essentially, they all refer to using ultrasound with Doppler capabilities to assess blood flow within the penis, usually after inducing an erection pharmacologically.
Why is Understanding Penile Blood Flow Important?
A healthy erection depends critically on a precise sequence of vascular events: arteries must relax and widen to allow a rapid inflow of blood, and veins must compress adequately to trap that blood within the erectile chambers (corpora cavernosa), creating rigidity. Problems with either the inflow (arterial insufficiency) or the trapping mechanism (venous leak or veno-occlusive dysfunction) are common causes of erectile dysfunction. This test allows us to directly visualise and quantify these processes.

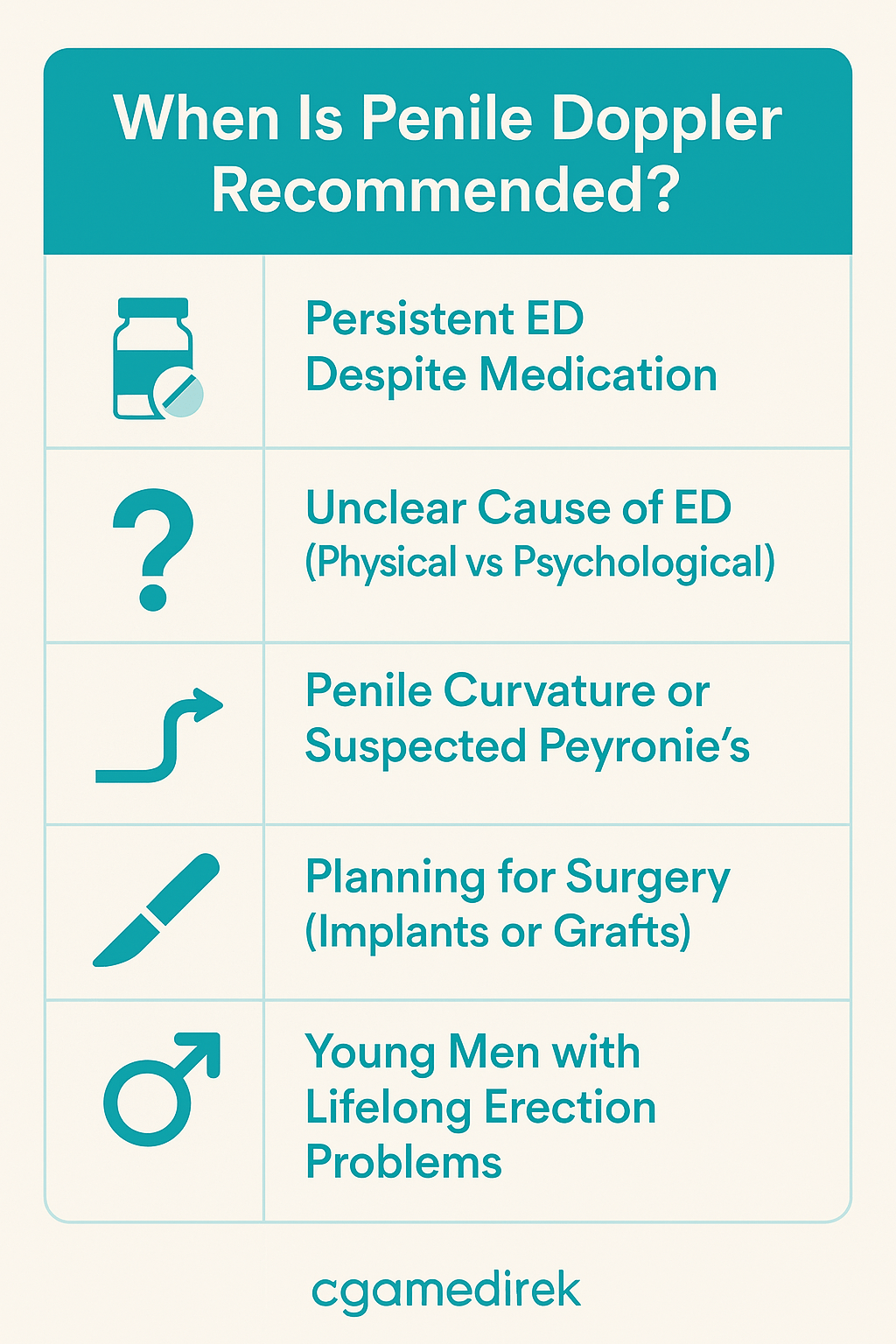

When Is Penile Doppler Ultrasound Recommended?
In brief: This test is mainly used to find the underlying cause of Erectile Dysfunction (ED), especially when early treatments have not worked or a blood vessel problem is suspected. It is also used to check the structural changes and blood flow effects of Peyronie's disease.
I typically recommend a Penile Doppler Ultrasound investigation in several specific clinical situations where understanding the vascular status is crucial for diagnosis and treatment planning:
Assessment of Erectile Dysfunction (ED)
A penile doppler ultrasound for erectile dysfunction is particularly valuable when:
Poor Response to First-Line Treatments: If oral medications like sildenafil (Viagra), tadalafil (Cialis), etc., are providing inadequate results, it suggests a potentially more significant underlying vascular issue that these drugs cannot fully overcome.
Suspected Vasculogenic ED: When the medical history or presence of cardiovascular risk factors (like diabetes, hypertension, high cholesterol, smoking, heart disease) strongly suggests that problems with blood flow (either arterial insufficiency or venous leak) are the likely cause of ED.
Younger Men with ED: ED in younger men (e.g., under 40-50) is less commonly due to typical age-related vascular changes, and a Doppler ultrasound can help identify specific causes like post-traumatic arterial damage or significant venous leak.
Post-Surgical or Post-Traumatic ED: Following procedures like radical prostatectomy, pelvic radiation, or significant pelvic/penile trauma, the test can quantify the extent of vascular damage and guide rehabilitation or further treatment.
Evaluation of Peyronie's Disease
For men presenting with penile curvature, pain, or palpable plaques:
Plaque Characterisation: To accurately visualise, measure (size, location), and assess the nature (e.g., calcification) of the plaque(s) within the tunica albuginea.
Assessment of Vascular Compromise: To determine if the plaque itself is physically impeding arterial inflow or causing venous leakage, contributing to co-existing ED.
Stability Assessment: While not the primary method (serial photography is often used), observing plaque characteristics can contribute to assessing disease stability, which is vital before considering surgical correction.
Surgical Planning: Detailed anatomical information from the ultrasound aids in planning the most appropriate surgical approach if needed.
Investigation Following Priapism
After an episode of priapism (a prolonged, often painful erection lasting more than 4 hours):
Assessment of Vascular Damage: To evaluate the health of the erectile tissue and blood vessels following potential oxygen deprivation during the priapism event. This can assess the risk of future erectile dysfunction.
Guiding Future Management: The findings can help inform strategies to prevent recurrence or manage subsequent ED. A specific penile doppler ultrasound priapism protocol might be used in certain contexts.
The decision to proceed with a Penile Doppler Ultrasound is always based on individual symptoms, history, and the clinical questions that need answering to provide the best possible care.

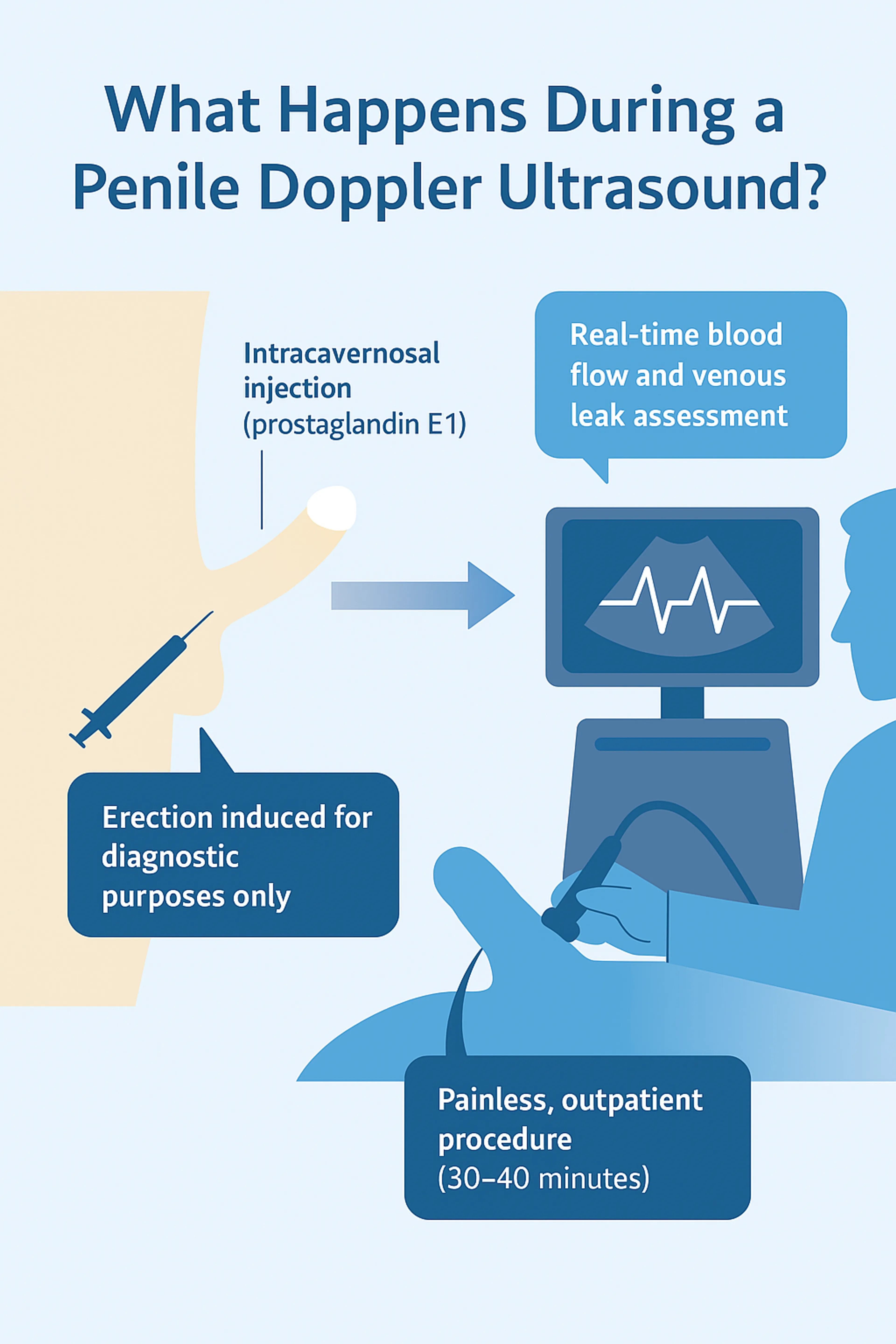

The Penile Doppler Ultrasound Procedure: What to Expect Step-by-Step
In brief: The test starts with a basic ultrasound scan of the penis. Then a small injection is given to produce an erection. Blood flow is measured with the Doppler probe as the erection develops and is held. The whole process usually takes 30–45 minutes in a private clinic room.
Understanding the sequence of events during the penile doppler ultrasound procedure can help alleviate any apprehension. Here’s a detailed walkthrough of what typically happens during the study conducted in my clinic:
Arrival and Preparation:
You'll be welcomed into a private examination room.
We will briefly re-confirm the reason for the test and ensure you have no further questions before starting.
You will be asked to undress from the waist down and lie comfortably on the examination couch, covered appropriately to maintain dignity.
Baseline Scan (Flaccid State):
I will apply a water-based ultrasound gel to the penis. This gel helps transmit the sound waves effectively.
Using the handheld ultrasound probe (transducer), I will perform an initial scan of the penis while it is flaccid.
This baseline assessment evaluates the basic anatomy, measures the diameter of the cavernosal arteries in their resting state, and looks for any obvious structural abnormalities like large plaques or calcifications.
Pharmacological Erection Induction:
The key step to assess dynamic blood flow is to induce an erection medically.
I will carefully clean an area on the side of the penile shaft with an antiseptic wipe.
A small dose of a vasodilator medication (most commonly Alprostadil, a synthetic form of Prostaglandin E1) is injected directly into one of the corpora cavernosa using a very fine needle (similar to an insulin needle). This specific penile doppler ultrasound injection technique ensures the medication reaches the erectile tissue directly.
You may feel a brief, sharp sting or pinch, similar to a routine blood test or vaccination. Most men find this far less uncomfortable than they anticipate. The medication itself does not usually cause pain.
Monitoring Erection Development and Doppler Measurements:
Following the injection, an erection typically begins to develop within 5 to 15 minutes.
During this phase, I will continuously use the Doppler probe to monitor and measure the changes in penile blood flow. Key measurements are taken at specific time points (e.g., 5, 10, 15, 20 minutes post-injection).
Specifically, I will measure:
Peak Systolic Velocity (PSV): The maximum speed of blood flowing into the cavernosal arteries.
End Diastolic Velocity (EDV): The speed of blood flow at the end of the heart's relaxation phase.
Arterial Diameter: How much the arteries have dilated compared to the baseline.
The quality and rigidity of the erection achieved are also noted.
Throughout this process, I will be moving the probe gently along the shaft and base of the penis to obtain readings from different locations.
Structural Re-assessment (Erect State):
Once a sufficient erection is achieved, I will also re-examine the penile structures, paying close attention to any plaques (measuring their size and effect on erection), curvature, or other abnormalities that become more apparent during rigidity.
Completion:
After approximately 20-30 minutes of measurements post-injection (total procedure time usually 30-45 minutes), the active part of the test is complete.
The ultrasound gel is wiped off.
You will be given instructions regarding the expected resolution of the erection and what to do in the rare event of priapism (prolonged erection).
My aim throughout the penile doppler ultrasound procedure is to ensure accuracy while maintaining your comfort and dignity, explaining each step as we proceed.
Consultant-Performed Penile Doppler in London
A consultation before the test is recommended; remote consultations are available
What Does Penile Doppler Ultrasound Evaluate Specifically?
In brief: The test measures how fast blood flows into the penis — this is called Peak Systolic Velocity (PSV, the top speed of blood entering the arteries). It also checks how well blood is kept inside — using End Diastolic Velocity (EDV, the flow speed when the heart relaxes) and Resistive Index (RI, a ratio that shows how well blood is being trapped). It also shows the structure of the penis, including any plaques (scar tissue) or fibrosis (hardened tissue).
The Penile Doppler Ultrasound provides objective, quantitative data on several key aspects of penile vascular function and anatomy. These measurements help pinpoint the specific physiological problem contributing to erectile dysfunction or impacting Peyronie's disease:
1. Arterial Inflow Assessment:
Peak Systolic Velocity (PSV): This is a critical measure of how quickly blood can rush into the cavernosal arteries when they dilate during erection. It reflects the maximum speed during the heart's contraction (systole).
Interpretation: Generally, a PSV below 25-30 cm/second after pharmacological stimulation is considered indicative of arterial insufficiency. This means the arteries are not delivering enough blood quickly enough to achieve a firm erection, often due to narrowing or hardening (atherosclerosis).
Cavernosal Artery Diameter: The ultrasound measures the diameter of the arteries before and after the injection.
Interpretation: Healthy arteries should dilate significantly (e.g., increase diameter by >60-75%) in response to the vasodilator. Failure to dilate adequately also points towards arterial dysfunction.
2. Venous Outflow (Veno-occlusion) Assessment:
End Diastolic Velocity (EDV): This measures the speed of blood flow within the cavernosal arteries during the heart's relaxation phase (diastole), once the penis should ideally be trapping blood.
Interpretation: In a normally functioning veno-occlusive mechanism, the EDV should be very low (e.g., <5 cm/second) as blood outflow is minimal. An elevated EDV (e.g., >5 cm/second) suggests that blood is leaking out of the erectile chambers too quickly, preventing the maintenance of a rigid erection. This is termed venous leakage or veno-occlusive dysfunction.
Resistive Index (RI): This is a calculated ratio derived from PSV and EDV: RI = (PSV - EDV) / PSV.
Interpretation: The RI provides an overall measure of vascular resistance within the penis during erection. A high RI (e.g., >0.85 or >0.9, depending on the reference range used) indicates good trapping of blood (high resistance to outflow). A low RI suggests poor trapping (low resistance), consistent with venous leakage.
3. Structural Assessment:
Tissue Echogenicity: Assessing the texture of the erectile tissue (corpora cavernosa) on the ultrasound image. Areas of increased echogenicity can indicate fibrosis (scarring).
Plaque Detection and Characterisation (Peyronie's Disease): The ultrasound can clearly visualise plaques, measuring their size, exact location (dorsal, ventral, lateral), and assessing if they contain calcification (which appears as bright white spots with shadowing). This is crucial for planning treatment.
Tunica Albuginea Integrity: Evaluating the fibrous sheath surrounding the corpora for any potential abnormalities.
Curvature Assessment (Dynamic): While photography is often preferred for stability, the ultrasound can provide a real-time assessment of curvature during the induced erection.
By analysing these parameters together, we can build a detailed picture of the patient's specific erectile mechanism, differentiating between arterial problems, venous problems, structural issues, or combinations thereof.
FAQs
Yes — in the vast majority of cases you can drive home and carry on with your day.
The test is done with a small injection into the penis to produce an erection so we can assess blood flow. It doesn’t affect your concentration or coordination.
If you feel light-headed (rare), we’ll let you sit and recover before you leave.
Usually, yes — don’t take Viagra (sildenafil), Cialis (tadalafil), Levitra (vardenafil) or similar on the day of the test, unless I specifically advise otherwise.
The combination has a slightly higher risk of complications
Practical rule (safe default):
Sildenafil / vardenafil: avoid for 24 hours beforehand
Tadalafil (Cialis): avoid for 48 hours beforehand (it lasts longer)
If you’re not sure what you’re taking, bring the name/dose (or a photo of the box) and we’ll guide you.
Penile Doppler ultrasound is offered on a self-pay basis only.
The price is fixed and transparent, and includes:
the consultation (unless you have a referral from your specialist)
the injection test
the Doppler ultrasound
interpretation and explanation of results
a written report
You can find the current price and full breakdown on the Practice Transparency page (linked in the footer), and you’ll also see it clearly displayed at the point of booking.
If, after assessment, Doppler isn’t appropriate, we won’t proceed unnecessarily.
Patient Preparation and Experience
In brief: You do not need to fast before the test. Tell your doctor about all the medicines you take. Knowing what will happen helps reduce anxiety. After the test, the erection caused by the injection usually goes away within 1–2 hours. Contact your doctor or go to A&E (Accident and Emergency) if it lasts more than 4 hours.
I understand that undergoing a penile doppler ultrasound can cause some anxiety, largely due to the intimate nature of the examination and the use of an injection. Knowing what to expect before, during, and after can significantly help:
Before Your Appointment:
Medication Review: It is crucial to inform me about all medications you are currently taking, including prescription drugs, over-the-counter medications, and any supplements. Particular attention is paid to blood thinners (like Warfarin, Apixaban, Rivaroxaban, Clopidogrel, Aspirin) and any medications you already use for erectile dysfunction. Depending on the specific medication and your medical condition, I may advise you to temporarily stop certain drugs before the test, but never stop any medication without specific instructions from me or your prescribing doctor.
No Fasting Needed: You can eat and drink normally before the procedure.
Timing: Allow approximately one hour for the entire appointment, although the test itself usually takes 30-45 minutes.
Transportation: While most men feel fine afterwards, arranging for someone to drive you home is a sensible precaution, especially if you are feeling anxious or have a long journey.
Mental Preparation: Reading this guide and asking any remaining questions during your initial consultation is the best preparation. Remember, this is a standard diagnostic test designed to help understand your condition better.
During the Procedure:
Comfort and Dignity: We prioritise your comfort and dignity throughout. The room is private, and you will be appropriately covered.
Communication: I will explain each step as we go. Please feel free to ask questions or voice any concerns at any time.
Sensation: The main sensation is the brief pinch or sting from the fine needle injection. The ultrasound probe itself is painless. The induced erection should also feel natural and typically not painful, unless there's underlying inflammation (e.g., active Peyronie's).
After the Procedure:
Immediate Recovery: You can usually get dressed and leave shortly after the test is completed. Most men return to their normal daily activities straight away.
Erection Resolution: The erection induced by the medication will typically subside gradually over 1 to 2 hours. Occasionally, it might last slightly longer.
Priapism Risk (Rare but Important): The primary potential complication is priapism – an erection lasting longer than 4 hours. This is rare with the doses used for diagnostic Doppler studies but requires immediate medical attention if it occurs, as prolonged erection can damage penile tissues. You MUST contact me immediately or attend the nearest Accident & Emergency department if your erection persists for more than 4 hours after the test. We provide clear instructions and contact numbers for this unlikely event.
Bruising/Discomfort: A small bruise or minor soreness at the injection site is common and not usually a cause for concern. It typically resolves within a few days. Simple painkillers like paracetamol can be used if needed.
Follow-up: We will arrange a follow-up appointment (or communicate via secure message/phone) to discuss the detailed findings of your penile doppler ultrasound report and the resulting treatment plan.

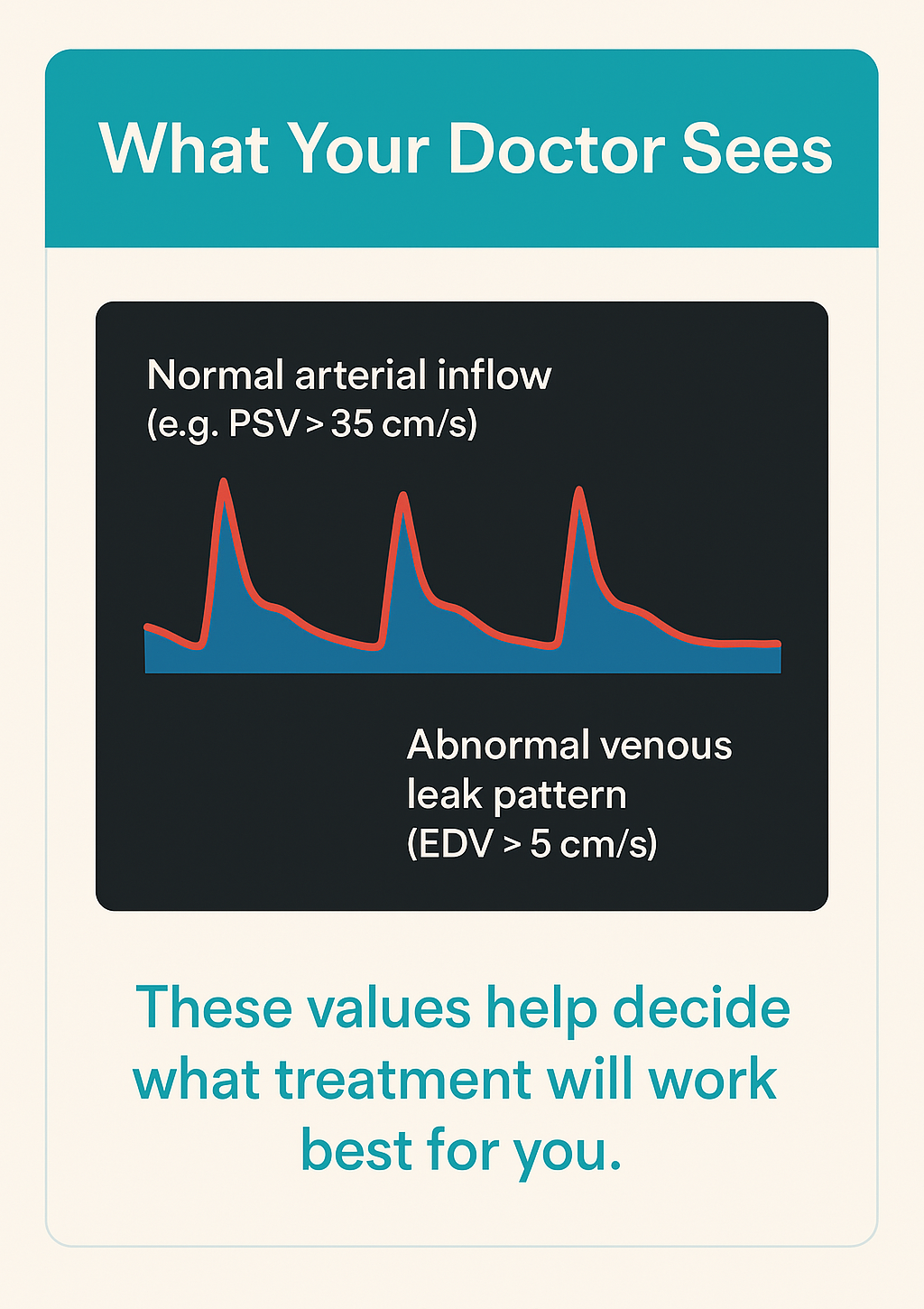

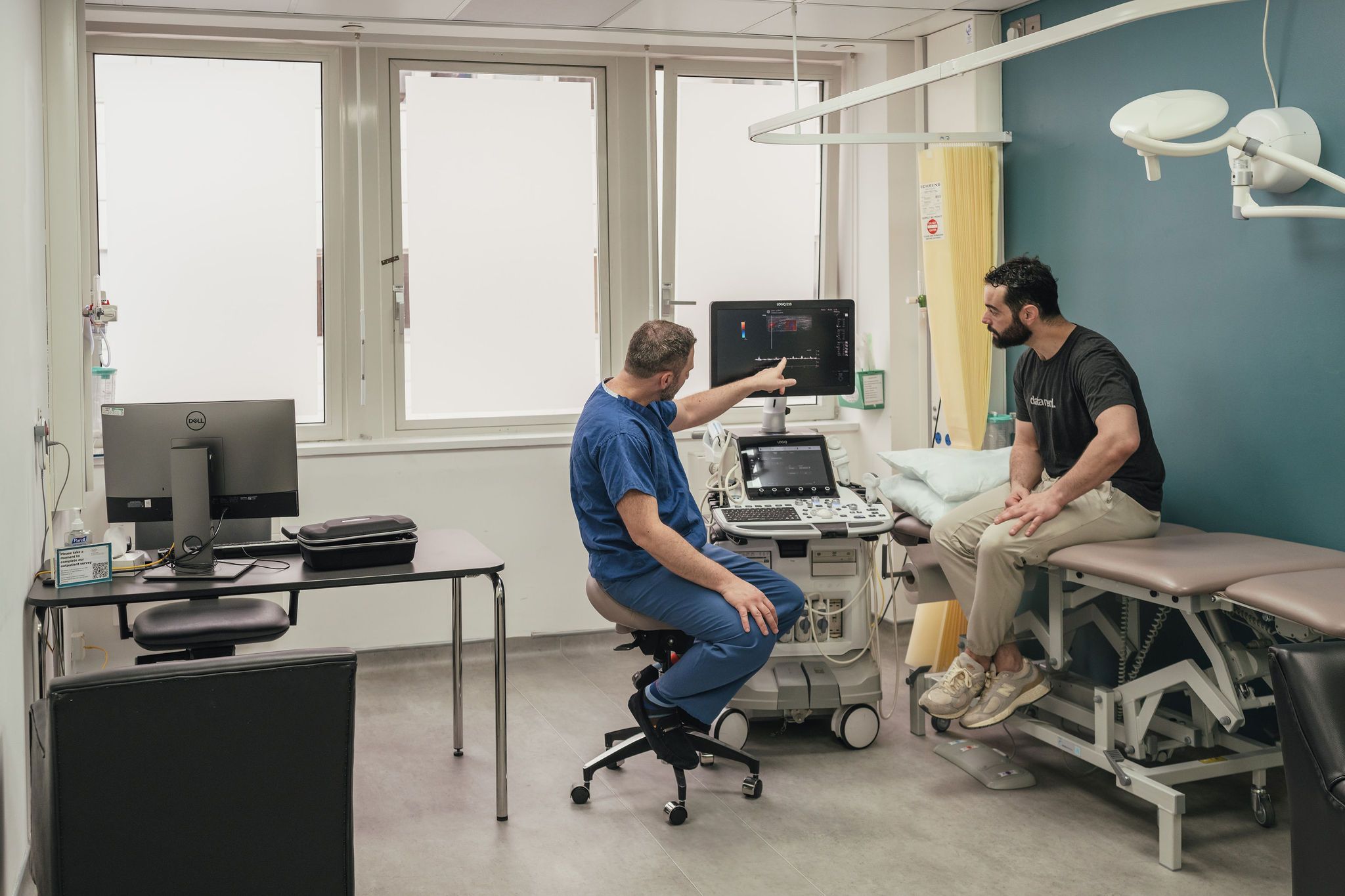

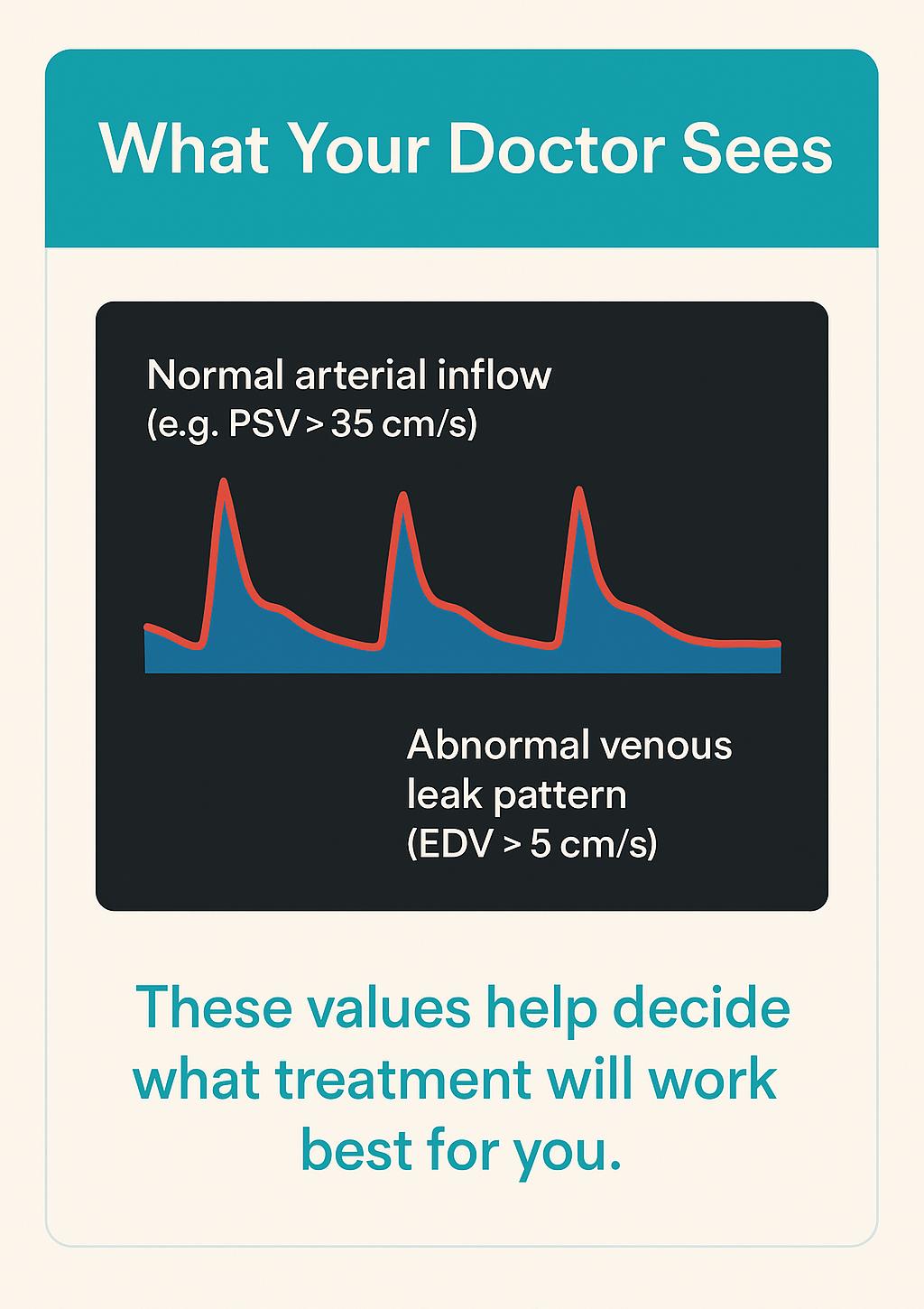

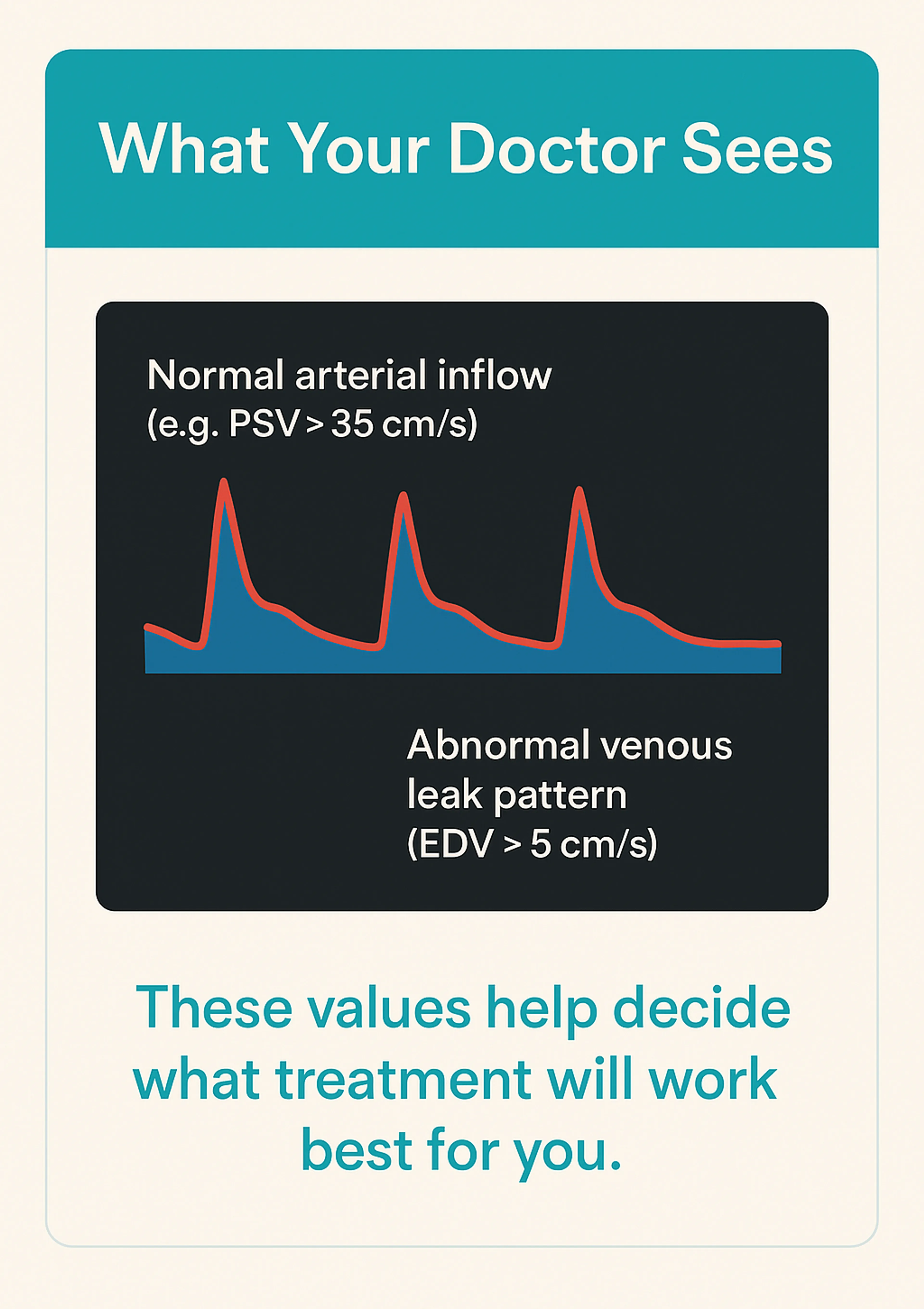

Understanding Your Penile Doppler Ultrasound Results
In brief: Results are grouped by blood flow measurements. Normal function means blood flows in and is trapped well. Arterial insufficiency (poor blood inflow) means not enough blood is entering the penis. Venous leakage (poor trapping) means blood escapes too quickly. Mixed dysfunction means both problems are present. Structural issues like Peyronie's plaques are also found and reported.

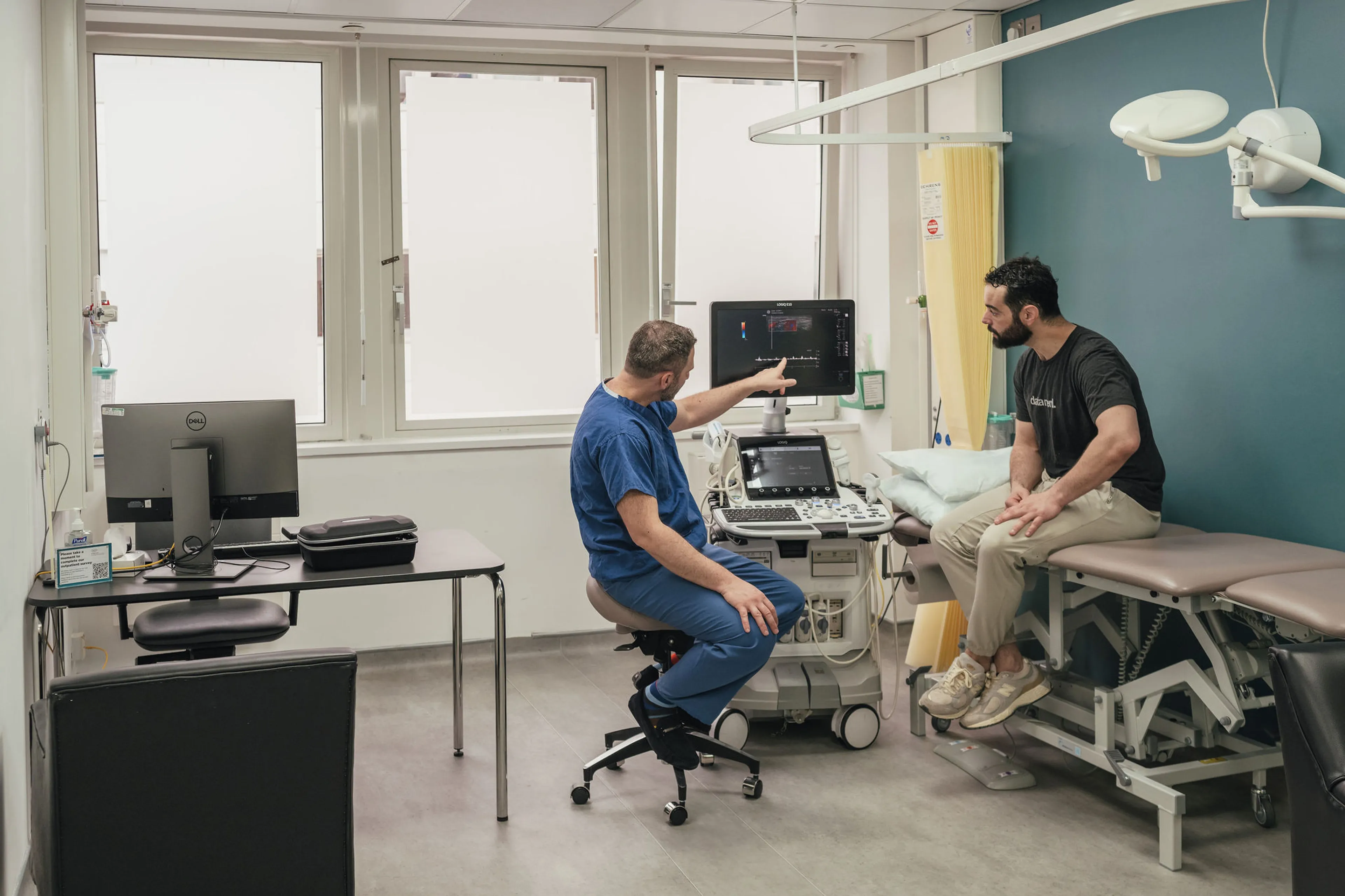

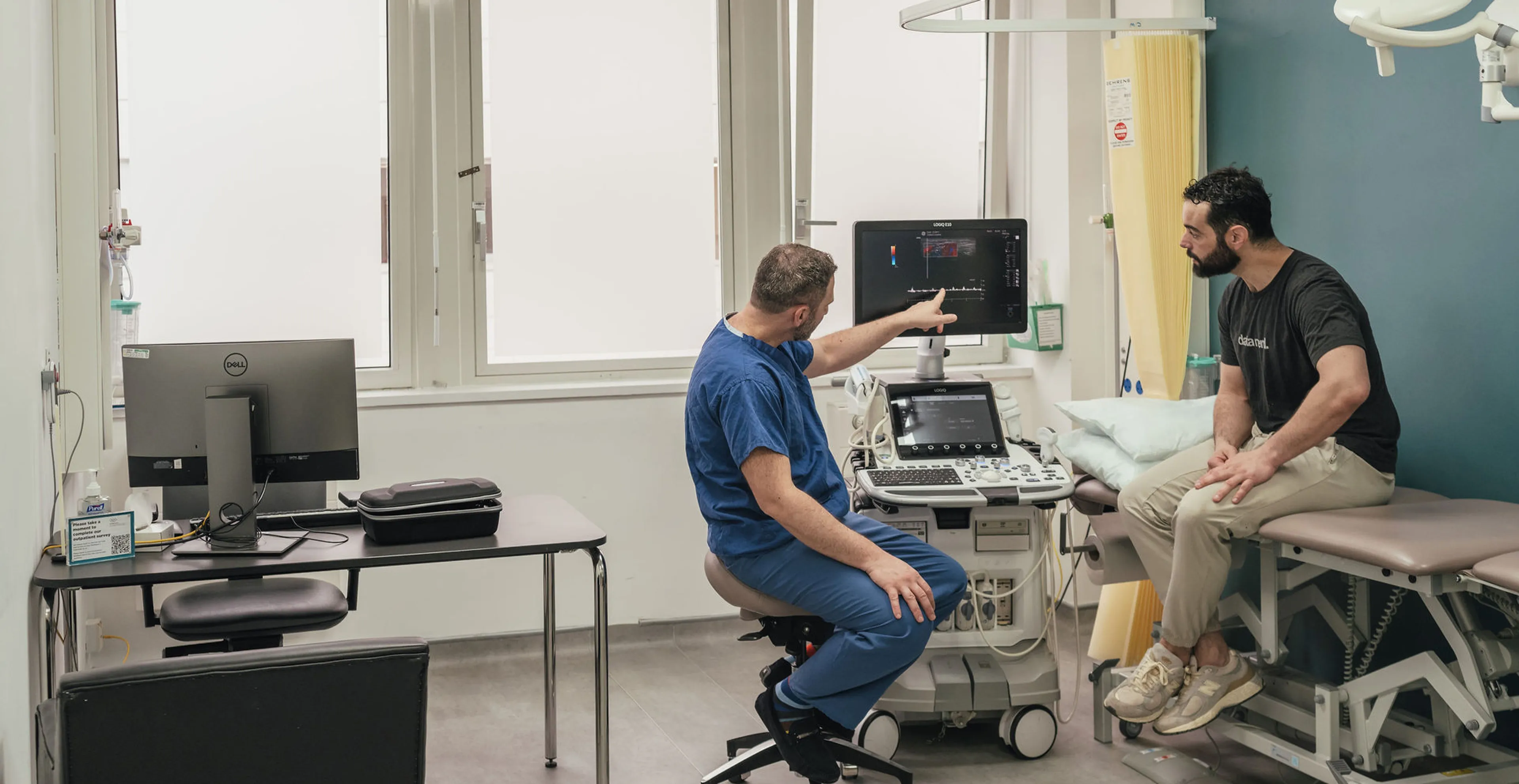

After the penile doppler ultrasound study is completed, the recorded measurements (PSV, EDV, RI, arterial diameter changes) and structural images are carefully analysed. During your follow-up consultation, I will explain the findings from your specific penile doppler ultrasound report in clear terms. The results generally fall into several patterns:
Normal Vascular Function:
Findings: Adequate Peak Systolic Velocity (PSV typically >30 cm/s), low End Diastolic Velocity (EDV typically <5 cm/s), and a high Resistive Index (RI typically >0.85-0.9). Arteries dilate well. No significant structural abnormalities.
Interpretation: This suggests that the blood vessels responsible for erection are likely functioning correctly. If erectile dysfunction is present, the cause is more likely to be non-vascular, such as:
Further investigations into these areas may be recommended. A normal penile doppler ultrasound result is therefore very useful in directing further diagnostic steps.
Arterial Insufficiency:
Findings: Low PSV (<25-30 cm/s), often accompanied by poor arterial dilation. EDV and RI may be normal or abnormal.
Interpretation: Insufficient blood is flowing *into* the penis to achieve a rigid erection. This is often associated with cardiovascular risk factors like atherosclerosis, hypertension, diabetes, or smoking, or can result from trauma. Treatment will focus on improving inflow or bypassing the issue (e.g., lifestyle changes, medications like PDE5 inhibitors if some flow exists, injections, or potentially implants if severe).
Venous Leakage (Veno-occlusive Dysfunction):
Findings: Often normal or near-normal PSV initially, but with persistently elevated EDV (>5 cm/s) and a low RI (<0.85-0.9). The erection may develop but cannot be sustained rigidly.
Interpretation: Blood flows into the penis adequately, but the trapping mechanism fails, allowing blood to leak out too quickly. This can be due to structural issues in the tunica albuginea, problems with smooth muscle relaxation, or damage to the venules. Treatment is often more challenging and may involve mechanical devices (VEDs), injections, or penile implants.
Mixed Vascular Dysfunction:
Findings: A combination of low PSV *and* elevated EDV / low RI.
Interpretation: Both arterial inflow and venous trapping mechanisms are impaired. This pattern is common, particularly in men with multiple cardiovascular risk factors or long-standing diabetes. Treatment needs to address both aspects and is often complex, frequently leading towards therapies like injections or implants.
Structural Abnormalities:
Findings: Clear visualisation of Peyronie's plaques (location, size, calcification noted), significant fibrosis within the corpora cavernosa, or other anatomical issues.
Interpretation: These structural findings can directly cause ED (by impeding blood flow or causing pain/curvature) or coexist with vascular issues. The report details these findings to guide specific treatments for Peyronie's disease or other structural problems.
Understanding the specific pattern revealed by your doppler ultrasound penile blood flow analysis is crucial for tailoring the most effective and appropriate treatment plan.
Risks and Potential Complications
In brief: Penile Doppler Ultrasound is generally very safe. The main risks come from the injection. Minor bruising or soreness is common. A prolonged erection — called priapism (an erection lasting more than 4 hours) — is rare but needs immediate medical attention. Infection or allergic reaction are very rare.
While Penile Doppler Ultrasound is considered a safe and minimally invasive procedure, like any medical intervention involving an injection, there are potential risks and side effects, although serious complications are uncommon. It's important to be aware of these:
Pain or Discomfort: The most common sensation is brief discomfort or a sting during the injection itself. Some mild soreness at the injection site may persist for a day or two afterwards. Significant pain is unusual.
Bruising or Haematoma: A small bruise (ecchymosis) at the injection site is relatively common and typically resolves on its own within a few days to a week. Occasionally, a slightly larger collection of blood under the skin (haematoma) can form, which may take longer to resolve but is usually not serious. Applying brief pressure after the injection helps minimise this.
Priapism (Prolonged Erection): This is the most significant potential risk, although rare with the diagnostic doses used (estimated incidence often quoted as <1%). Priapism is defined as a persistent erection lasting more than 4 hours after the procedure, unrelated to sexual stimulation. It requires immediate medical attention (contacting the clinic/doctor or attending A&E) because prolonged lack of blood flow can damage the erectile tissues. Treatment usually involves simple measures or further injections to reverse the erection. Clear instructions and emergency contact details are always provided.
Infection: As with any injection, there is a very small theoretical risk of infection at the injection site. Sterile technique is used throughout the penile doppler ultrasound procedure to minimise this risk.
Bleeding: Minor spotting is possible immediately after the injection. Significant bleeding is very rare, especially if you have informed us about any blood clotting disorders or blood-thinning medications.
Fibrosis or Scarring: Repeated injections into the penis (as used for ED treatment, not typically from a single diagnostic Doppler test) carry a small risk of causing scar tissue (fibrosis) at the injection sites over time. This is highly unlikely from a single test.
Allergic Reaction: Allergy to the injected medication (Alprostadil/Prostaglandin E1) is extremely rare but possible.
Vasovagal Reaction (Fainting): Some individuals may feel faint or lightheaded in response to the injection or the procedure itself, particularly if anxious. Lying down during the procedure helps prevent this.
Overall, the penile doppler ultrasound risks are low, and the diagnostic benefits in appropriate patients generally far outweigh them. Discussing any specific concerns you have with me beforehand is always encouraged.
Benefits and Limitations of Penile Doppler Ultrasound
In brief: The main benefit is that it gives an objective (fact-based, measurable) diagnosis of blood flow problems, which guides treatment. The main limitations are that the test is done in a clinical setting rather than a natural one, and the results depend heavily on the skill of the person performing it.
Like any diagnostic test, Penile Doppler Ultrasound has significant advantages but also some inherent limitations to consider:
Key Benefits
Objective Vascular Assessment: It moves beyond subjective symptom reporting to provide concrete, measurable data about arterial inflow and venous outflow function. This is invaluable for accurate diagnosis of vasculogenic ED.
Differential Diagnosis: Helps distinguish between different causes of ED (arterial, venous, mixed, psychogenic, structural) and the vascular impact of Peyronie's disease.
Treatment Guidance: The specific findings directly inform the choice of the most appropriate and likely effective treatment strategy. For instance, confirming severe venous leak might steer treatment away from oral medications towards injections or implants sooner. Identifying good arterial flow might support focusing on psychosexual therapy or less invasive options.
Structural Visualisation: Provides detailed images of the penile anatomy, including the corpora cavernosa, tunica albuginea, and any plaques or fibrosis, which is essential in Peyronie's disease assessment.
Minimally Invasive: Compared to older, more invasive vascular tests like formal cavernosometry/cavernosography, it is significantly less invasive and carries fewer risks.
Patient Education: Visualising the blood flow can help patients better understand the physiological basis of their condition.
Limitations
Artificial Environment: The test is performed in a clinical setting using a pharmacologically induced erection, not natural sexual arousal. Anxiety or the clinical environment itself can sometimes influence the physiological response (e.g., sympathetic nerve activation can inhibit erection).
Operator Dependency: The accuracy and reliability of the results are highly dependent on the skill, experience, and meticulous technique of the clinician performing the ultrasound and interpreting the findings. Choosing a specialist experienced in this specific examination is important.
Snapshot Evaluation: The test reflects vascular function at a single point in time. Some physiological parameters can potentially vary day-to-day, although significant vascular disease usually shows consistent patterns.
Indirect Veno-occlusion Assessment: While EDV and RI are good indicators, they are indirect measures of venous leakage. Direct visualisation of specific leaking veins is not typically possible with standard Doppler.
Medication Response Variability: Not all individuals respond identically to the vasodilator injection, which can sometimes affect the ability to achieve maximum rigidity for optimal assessment.
Cost and Availability: As a specialised test requiring specific equipment and expertise, the penile doppler ultrasound cost may be a factor for private patients, and availability within the NHS can vary with waiting times.
Despite these limitations, Penile Doppler Ultrasound remains the gold standard investigation for assessing penile vascular dynamics in the evaluation of relevant conditions.
Frequently Asked Questions
In brief: Discomfort is usually small — mainly a brief sting from the injection. Your privacy is protected throughout. If a full erection does not happen, that is still useful information. Your partner can be present if you wish. Check with your insurer about whether the cost is covered.
Will the procedure be painful? Most men report only mild, brief discomfort during the injection, often described as a sting similar to a blood test or vaccination. The ultrasound probe itself is painless. The erection induced should not be painful unless there's active inflammation (like acute Peyronie's). Any soreness afterwards is usually minor and short-lived.
Will I be exposed during the test? Yes, the penis needs to be exposed to perform the ultrasound scan accurately. However, the procedure takes place in a private room with only the necessary clinical staff present. We use appropriate draping to maintain your dignity as much as possible.
What if I don't achieve a full erection during the test? This is actually important diagnostic information. Failure to achieve a rigid erection despite direct pharmacological stimulation strongly suggests a significant underlying vascular problem (either poor arterial inflow or severe venous leak, or both) or potentially other issues. It does not mean the test has "failed"; rather, the lack of response is a key part of the assessment.
Will my partner be allowed in the room? This is entirely up to you. Some men feel more comfortable having their partner present for support, while others prefer complete privacy. We will respect your preference either way.
Is this test covered by private insurance? What is the typical penile doppler ultrasound cost UK? In the UK, most major private health insurance providers cover Penile Doppler Ultrasound when it is deemed medically necessary by a specialist for diagnosing conditions like ED or Peyronie's disease. However, policies vary, so it is essential to check with your insurer about your specific coverage, potential excess, and any pre-authorisation requirements. If self-funding, the penile doppler ultrasound price can vary between clinics and regions; we can provide a clear cost breakdown prior to booking the procedure at our London or Milton Keynes facilities.
What is the difference between Penile Doppler Ultrasound and Penile Duplex Doppler Ultrasound? These terms are often used interchangeably. "Duplex" refers to the combination of standard B-mode ultrasound (creating the structural image) and Doppler ultrasound (measuring flow). So, technically, most Penile Doppler Ultrasounds performed for ED/Peyronie's are Duplex studies.
How long does it take to get the results/report? While I can often give you a preliminary indication of the findings immediately after the scan, a formal, detailed penile doppler ultrasound report requires careful analysis of all the measurements and images. This report is typically finalised within a few days, and we will discuss it comprehensively at your scheduled follow-up appointment.
Next Steps After Your Penile Doppler Ultrasound
In brief: Based on the Doppler results, we will discuss a treatment plan made for you. This may include medicines, lifestyle changes, mechanical aids, surgery (such as penile implants), or counselling.
The results of your Penile Doppler Ultrasound are not just numbers on a report; they are crucial pieces of information that guide the subsequent steps in your management plan. Once we have reviewed and discussed the findings, we can collaboratively decide on the most appropriate path forward, tailored to your specific diagnosis and personal circumstances. Potential next steps often include:
Optimising Medical Therapy:
If results show reasonable arterial inflow but perhaps mild venous leak, adjusting the type or dosage of oral PDE5 inhibitors might be effective.
If arterial insufficiency is moderate to severe, or oral medications fail, progressing to intracavernosal injections (ICI) or transurethral therapy (MUSE) might be recommended as these bypass the need for robust natural blood flow initiation.
Implementing or Reinforcing Lifestyle Modifications: Regardless of the findings, addressing cardiovascular risk factors is almost always beneficial. This includes advice on:
Regular aerobic exercise
Heart-healthy diet
Smoking cessation
Weight management
Optimal control of diabetes, hypertension, and cholesterol.
Considering Mechanical Options:
Vacuum Erection Devices (VEDs) can be effective for various types of ED, particularly if injections are not desired or suitable. They can also play a role in penile rehabilitation.
Constriction rings may be helpful specifically for managing venous leakage to help maintain an erection achieved by other means.
Discussing Surgical Interventions:
If severe, treatment-resistant ED is confirmed, particularly with significant vascular compromise (arterial or venous) or co-existing Peyronie's disease, surgery might be the most effective long-term solution.
Specific surgical procedures for Peyronie's disease correction (corporoplasty, grafting) would also be discussed if the Doppler was part of that assessment and the condition is stable.
Addressing Psychological Factors:
If the Doppler results are normal or near-normal, it reinforces the possibility of a significant psychological component (performance anxiety, stress, relationship issues). Referral for psychosexual counselling or therapy may be highly beneficial.
Even when a physical cause is identified, counselling can help manage the emotional impact of the diagnosis and treatment process.
Further Investigations (Less Common): In rare or complex cases, findings might prompt consideration of other tests, although the Doppler is usually the definitive vascular assessment.
The Penile Doppler Ultrasound provides the map; the follow-up consultation is where we chart the best course for your journey towards improved erectile function and well-being.
I know that talking about and investigating intimate health concerns can be difficult. My approach is always to give clear, caring support in a professional setting where your dignity and concerns are fully respected.
If you have problems getting erections or are worried about penile curvature, please do not wait to get help. Diagnosing ED (erectile dysfunction) can save lives. In most cases, effective treatments and risk management are available.
If you have concerns about erections or Peyronie's disease, or want to know whether a Penile Doppler Ultrasound is right for you, I welcome you to book a private consultation. Together, we can find the underlying causes of your symptoms and plan the best way forward.
Suggestion or comments?
Every page on this website is always being improved. That is partly thanks to you — for taking the time to read it and for sending your comments, questions, or suggestions.
Penile Doppler Ultrasound in London | Mr Ollandini
